Line Up Clamps

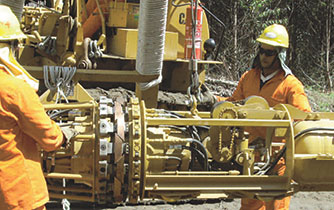

60-inch Pneumatic Internal Line-Up Clamp

Cross Country Pipeline carries a wide variety of manual and pneumatic internal line up clamps from leading manufacturers. We can provide the solution for all your welding needs.

  • Standard sizes 6”-60”, 62”-120” available upon request
  • Clamps 12”-60” will cover two pipe sizes by use of conversion kits
  • Standard clamps are adjustable up to .500 wall thickness, modified clamps are available for heavier wall pipe
  • Powered travel drive available on models 12”-60”
  • For efficient operation, the compressed air pressure should be 180-200 PSI. (12.4-13.8 Bar)
  • Maximum safe working pressure is 225 PSI (15.5 Bar)
  • Emergency braking systems available upon request

Both Non Self-Propelled and Self-Propelled Clamps Require Compressed Air
Sizes 6”-18” non self-propelled (pull type) require 25CFM.
Sizes 10”-36” self-propelled clamps require 40CFM.
Sizes 36”-60” self-propelled clamps require 90CFM.

All self-propelled clamps have 25 degree grade capability.

Standard Features
40’ reach rod
125’ air hose
Standard air valve brake

Contact our at 303-361-6797 for additional options and configurations.

Pneumatic Line-Up Clamps

Non Self-Propelled
IPLC6
Pipe Size 6"
Approx. Weight 98 lbs.
IPLC8
Pipe Size 8"
Approx. Weight 120 lbs.
IPLC10
Pipe Size 10"
Approx. Weight 175 lbs.
IPLC12-14
Pipe Size 12" - 14"
Approx. Weight 225 lbs.
IPLC16-18
Pipe Size 16" - 18"
Approx. Weight 418 lbs.
Self-Propelled
IPLC10
Pipe Size 10"
Approx. Weight 300 lbs.
IPLC12-14
Pipe Size 12" - 14"
Approx. Weight 355 lbs.
IPLC16-18
Pipe Size 16" - 18"
Approx. Weight 552 lbs.
IPLC20-22
Pipe Size 20" - 22"
Approx. Weight 625 lbs.
IPLC24-26
Pipe Size 24" - 26""
Approx. Weight 925 lbs.
IPLC28-30
Pipe Size 28" - 30"
Approx. Weight 1,230 lbs.
IPLC30-32
Pipe Size 30" - 32"
Approx. Weight 1,250 lbs.
IPLC34-36
Pipe Size 34" - 36"
Approx. Weight 1,700 lbs.
IPLC36-38
Pipe Size 36" - 38"
Approx. Weight 1,750 lbs.
IPLC40-42
Pipe Size 40" - 42"
Approx. Weight 2,480 lbs.
IPLC46-48
Pipe Size 46" - 48"
Approx. Weight 3,140 lbs.
IPLC52-54
Pipe Size 52" - 54"
Approx. Weight 4,950 lbs.
IPLC56
Pipe Size 56"
Approx. Weight 5,400 lbs.
IPLC60
Pipe Size 60"
Approx. Weight 6,000 lbs.
