Hydrostatic Test Equipment

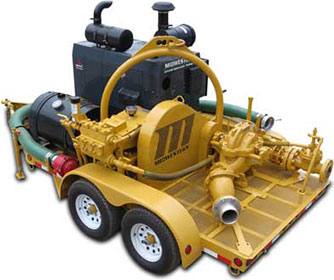

Midwestern HTU350

Cross Country Pipeline offers Hydrostatic Testers from Midwestern Manufacturing. These tough, reliable units are available as trailer or skid mount, at operating volumes of 350 ft. and 500 ft. of head pressure at 600 gpm. Contact our at 303-361-6797 for additional features and availability.

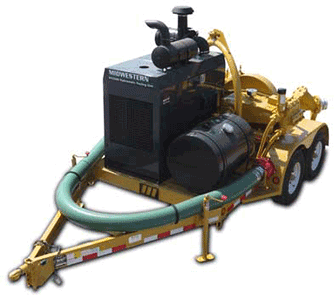

Midwestern HTU500


Hydro-test Equipment from PAI

Configurations

HTU-350
Pressure Pump Specification
Pump Type: Postive Displacement, 3-Plunger Pump
Operating Volume: 27 gpm (102 Lpm)
Operating Pressure: 3,265 psi (22,511 kPa)
Fill Pump Specification
Pump Type: Centrifugal Pump
Operating Volume: 350 ft of head pressure at 600 gpm (2,271 Lpm)
Operating Pressure: 160 psi (1,130 kPa)
Trailer Mount
Trailer Type: Tandem Axle rated at 10,000 lbs (4,536 kgs)
Width: 96" (2,438 mm)
Length: 204" (5,181 mm)
Height: 107" (2,718 mm)
Approx. Weight: 7,200 lbs (3,267 kg)
Hitch Type: Ball
Hitch Diameter: 2-5/16" (58.75 mm)
Trailer includes 20' suction hose and 6" valve, electric brakes, 3-point stabilizing jacks, and fully functional tail lights with turn signals and brake lights. Trailer unit salso have emergency breakaway kits with battery and safety chains.
Skid Mount
Width: 96" (2,438 mm)
Length: 204" (5,181 mm)
Height: 73" (1,854 mm)
Approx. Weight: 6,900 lbs (3,130 kg)

Trailer Mount Specifications »

Skid Mount Specifications »

HTU-500
Pressure Pump Specification
Pump Type: Postive Displacement, 3-Plunger Pump
Operating Volume: 27 gpm (102 Lpm)
Operating Pressure: 3,265 psi (22,511 kPa)
Fill Pump Specification
Pump Type: Centrifugal Pump
Operating Volume: 500 ft of head pressure at 600 gpm (2,271 Lpm)
Operating Pressure: 250 psi (1,724 kPa)
Trailer Mount
Trailer Type: Tandem Axle rated at 10,000 lbs (4,536 kgs)
Width: 96" (2,438 mm)
Length: 204" (5,181 mm)
Height: 107" (2,718 mm)
Approx. Weight: 7,800 lbs (3,538 kg)
Hitch Type: Ball
Hitch Diameter: 2-5/16" (58.75 mm)
Trailer includes 20' suction hose and 6" valve, electric brakes, 3-point stabilizing jacks, and fully functional tail lights with turn signals and brake lights. Trailer unit salso have emergency breakaway kits with battery and safety chains.
Skid Mount
Width: 96" (2,438 mm)
Length: 204" (5,181 mm)
Height: 73" (1,854 mm)
Approx. Weight: 7,500 lbs (3,402 kg)

Trailer Mount Specifications »

Skid Mount Specifications »
